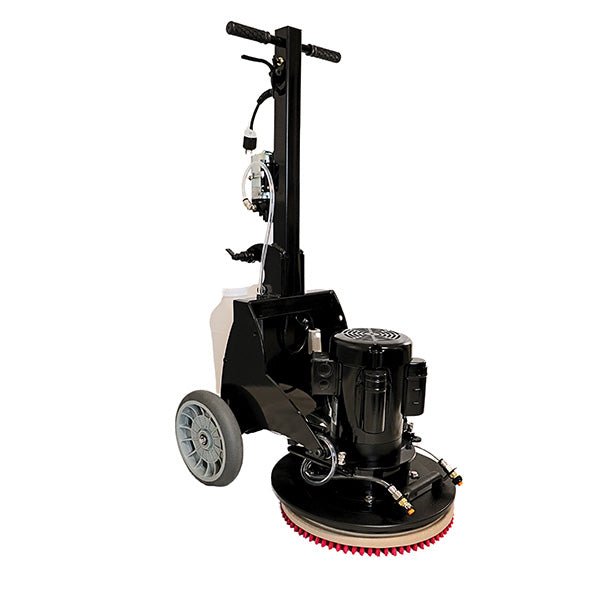

Phoenix MX

Phoenix MX

$4,595.00
Sale price  $4,595.00 Regular price  $4,795.00
ColorBlack
Free Shipping  |  No Sales Tax*

The Phoenix is versatile and highly effective for cleaning carpet, tile and grout, wood, and more. Includes an on-board sprayer. The Trinity Phoenix is a “Game Changer” when it comes to VLM (Very Low Moisture) cleaning machines. The “Tri-Directional” agitation process provides unmatched cleaning ability and is very easy for the operator to maneuver.

The Trinity’s cleaning action offers simultaneously, a rotary action, an orbital or oscillating action and a tamping action which provides a very thorough agitation to all parts of the fiber. The Trinity Phoenix, combined with your favorite encapsulation chemistry allows you to clean with very low moisture at high production rates in all commercial and residential applications.

Product Details

Features:

  • Aggressive agitation allows for easy suspension of soils
  • VLM cleaning provides excellent results and typically dries in less than one hour
  • Helps stand fibers up during cleaning
  • Uses less moisture and recovers efficiently, eliminating wicking
  • Faster Cleaning
  • Faster set-up and tear down
  • Not uncommon to clean upwards of 5,000 sq. ft. per hour depending on soiling condition
  • Very secure in sensitive environments as you can lock all doors while cleaning
  • 1 HP Dual Capacitor Industrial Motor
  • Locking Lever Handle
  • 18” Head w/ 16” Pad Driver, made of structurally durable composite
  • 10” Wheels
  • Handle on bell for easy load/unload
  • 117 Pounds

Advantages:

  • Utilizes a 2 1/2 gallon jug setup. Change your cleaning solutions by simply refilling or use several different jugs to eliminate spillage.
  • The Trinity MX has an on-board spray system that turns your MX into a super speed encap machine.
  • Dual sprayer head: Gives you an even spray pattern directly to the carpet fibers.
  • Sprayer handle gives you complete control, is durable and very easy to use. Apply as little or much solution as the job needs.
  • Handle folds down to give you a low profile in your truck for storage.
  • Flip up base, pull the machine backwards and the head flips up for easy pad changing or changing orbit speeds.
  • Pad driver is 16″ with a head weight of 91 pounds. This supplies optimum cleaning and cleaning speeds which are unrivaled in the industry. Nothing cleans better or faster.
  • 10″ wheels are optimum for taking upstairs: 8″ get caught in the stair risers, 12″ is too big. Soft, easy rolling wheels makes maneuvering the MX a dream.
  • Not a toy! The MX is 106 pounds of extreme oscillation with a head weight to match its power and movement.
  • The MX handle is adjusted by one pull pin that locks it tight. There are several settings: one for storage, one for bringing the machine in and out from each job, and the others to allow the handle to lock in a comfortable setting while cleaning on the job.
  • The MX is 100% made in America. The design is rigid and maintenance free.
  • The MX is powered by an Industrial Leeson motor designed specifically for Trinity Renewal Systems. Amazingly, it only uses 5.6 Amps compared to other 1 HP motors that use up to 14 amps. This means cooler running temps, long life, and smaller gauge extension cords. Motors come in 110v/60hz or 230v/50hz for Europe, New Zealand or Australia.
  • The 50 foot 14/3 cord is lightweight, yet more than ample for our low amperage motors.
  • Lever control sprayer takes just the touch of the finger, very easy to operate and extremely durable.
  • Driver is 16″ red bristle that can run virtually any type of pad. Cottons, blends, fiber, or even diamond pads work beautifully.
  • No gliders required. The MX operates at such a high speed it is MUCH gentler on the carpet fibers, yet cleans them better and quicker. Very easy to operate.
  • The ONLY OP (oscillating or orbital pad machine) that is patented. Our three speed system gives you the choice of cleaning speeds. Don’t be confused by old world, small orbit machines- they clean much slower and require care in operating so as not to tip bloom the carpet fibers.
Shipping & Taxes

Free Shipping on this item.

Built to Order - Please Allow 4-6 business days lead time. Ships via LTL Freight.

No Sales Tax except for orders shipped to Michigan.

Phoenix MX

Phoenix MX

Product Highlights

  • True orbital agitation for rapid soil removal
  • Large 18″ cleaning path for higher productivity
  • Commercial-grade torque for consistent agitation
  • Optimized for VLM and encapsulation methods
Oscillating Pad (OP) Carpet Cleaning Machine

Phoenix MXTri-Directional OP Cleaning System for VLM Carpet Cleaning

Aggressive tri-directional agitation, onboard spray system, and production speeds up to 5,000 sq. ft. per hour—built for professional Very Low Moisture (VLM) carpet cleaning.

Tri-Directional
Rotary + orbital + tamping
18" Head
16" pad driver
1 HP Motor
Industrial Leeson
5,000 ft²/hr
High production cleaning

The Trinity Phoenix is a true game-changer for Very Low Moisture (VLM) carpet cleaning. Its patented tri-directional agitation combines rotary motion, oscillation, and tamping action to thoroughly agitate carpet fibers from multiple directions—suspending soils quickly and evenly.

When paired with encapsulation chemistry, the Phoenix allows cleaners to achieve deep cleaning results using minimal moisture, producing faster dry times and excellent appearance results in both commercial and residential environments.

The built-in spray system, aggressive agitation, and efficient design make the Phoenix one of the fastest and most productive OP machines available today.

Tri-Directional Cleaning Technology

Rotary + Orbital + Tamping Agitation

The Trinity Phoenix delivers a unique tri-directional agitation system that works carpet fibers more thoroughly than traditional oscillating machines.

This simultaneous rotary, oscillating, and tamping motion agitates every part of the carpet fiber, helping release embedded soil quickly and evenly across the entire cleaning path.

The result is faster soil suspension, improved encapsulation cleaning performance, and consistently uniform cleaning results.

Tri-Directional Action
Rotary + orbital + tamping agitation
High Production
Up to 5,000 sq. ft. per hour

VLM Cleaning Advantages

Cleaner Carpets with Less Moisture

Encapsulation cleaning combined with OP agitation delivers professional results with minimal drying time.

💧

Very Low Moisture

Uses minimal water while delivering deep carpet cleaning performance.

Fast Dry Times

Carpets typically dry in under one hour in many cleaning environments.

📈

Higher Production

Clean large areas quickly with production speeds up to 5,000 sq. ft. per hour.

🎯

Prevents Wicking

Low moisture cleaning reduces wick-back and recurring spots.

🔧

Faster Setup

Quick setup and teardown improves overall productivity on every job.

🏠

Secure Cleaning

Minimal equipment footprint allows cleaning in secure environments.


Integrated On-Board Sprayer

  • Dual spray head distributes solution evenly across carpet fibers
  • 2.5-gallon jug system allows quick solution changes without spills
  • Finger-controlled sprayer handle allows precise solution application
  • Perfect for encapsulation cleaning and VLM maintenance programs
⚙ Turn the Phoenix into a high-speed encapsulation cleaning system with built-in spray control.

Professional Machine Design

  • Locking lever handle with multiple adjustment positions
  • Handle folds down for compact vehicle storage
  • Flip-up base allows quick pad changes and maintenance
  • Large 10" wheels improve maneuverability and stair transport
  • Bell handle assists with loading and unloading
🚶 Balanced weight and smooth maneuverability make long cleaning sessions easier on operators.

Built for Professional Use

  • 1 HP dual capacitor industrial motor
  • Leeson motor designed specifically for Trinity systems
  • Low 5.6 amp power draw for cooler operation and longer motor life
  • Heavy-duty composite construction
  • 100% Made in America
  • Maintenance-free design built for daily commercial use

Technical Specifications

Professional Performance Specs

Designed for high production VLM cleaning and commercial environments.

Motor1 HP Industrial Leeson Motor
Power Consumption5.6 Amps
Cleaning Head18"
Pad Driver16"
Head Weight91 lbs
Machine WeightApprox. 117 lbs
Wheels10" Soft Rolling Wheels
Cord50 ft • 14/3 gauge

VLM Cleaning.
Maximum Production.

If you want aggressive agitation, faster production speeds, and professional encapsulation cleaning results—the Trinity Phoenix delivers unmatched OP performance.

Professional-grade oscillating pad machine built for high production carpet cleaning.
