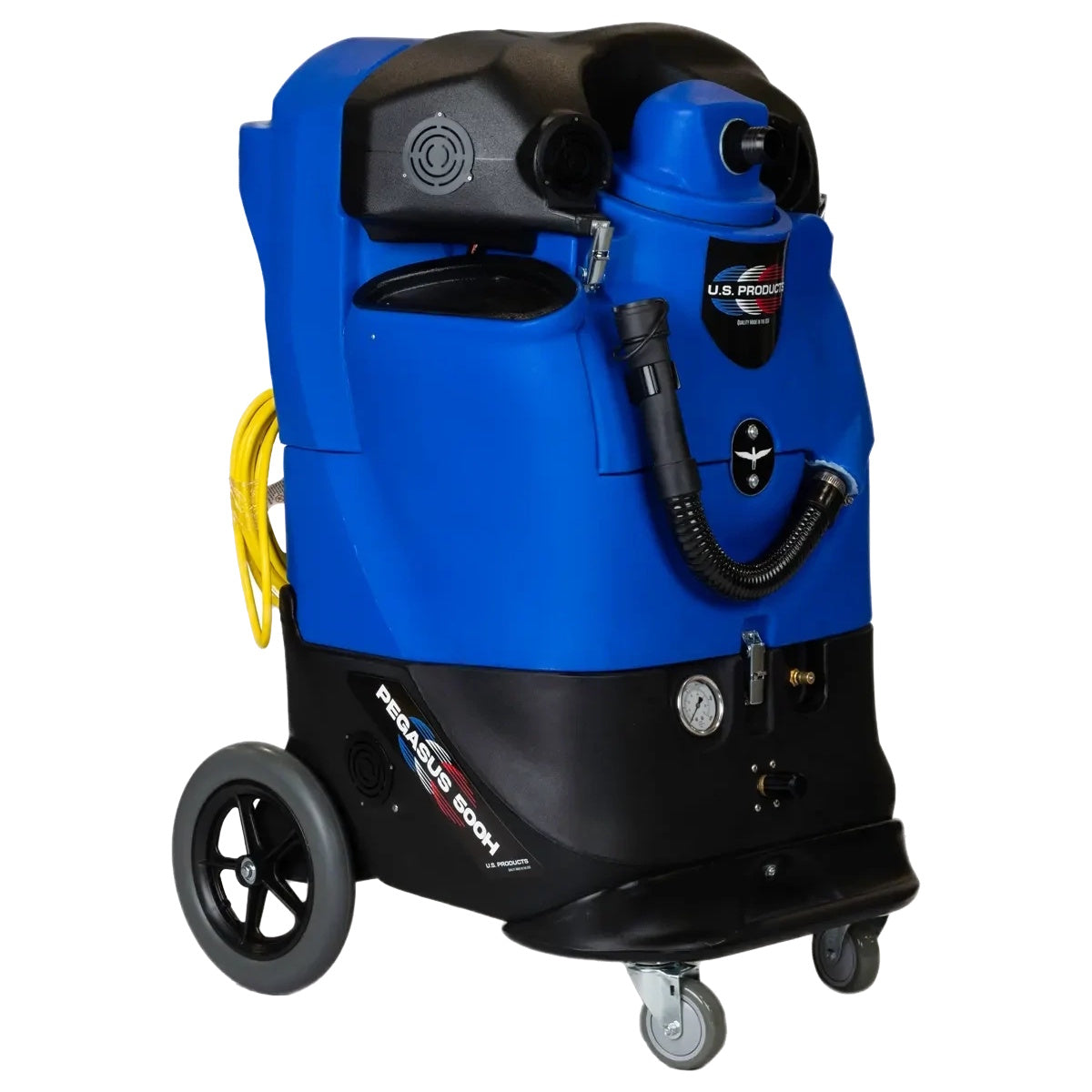

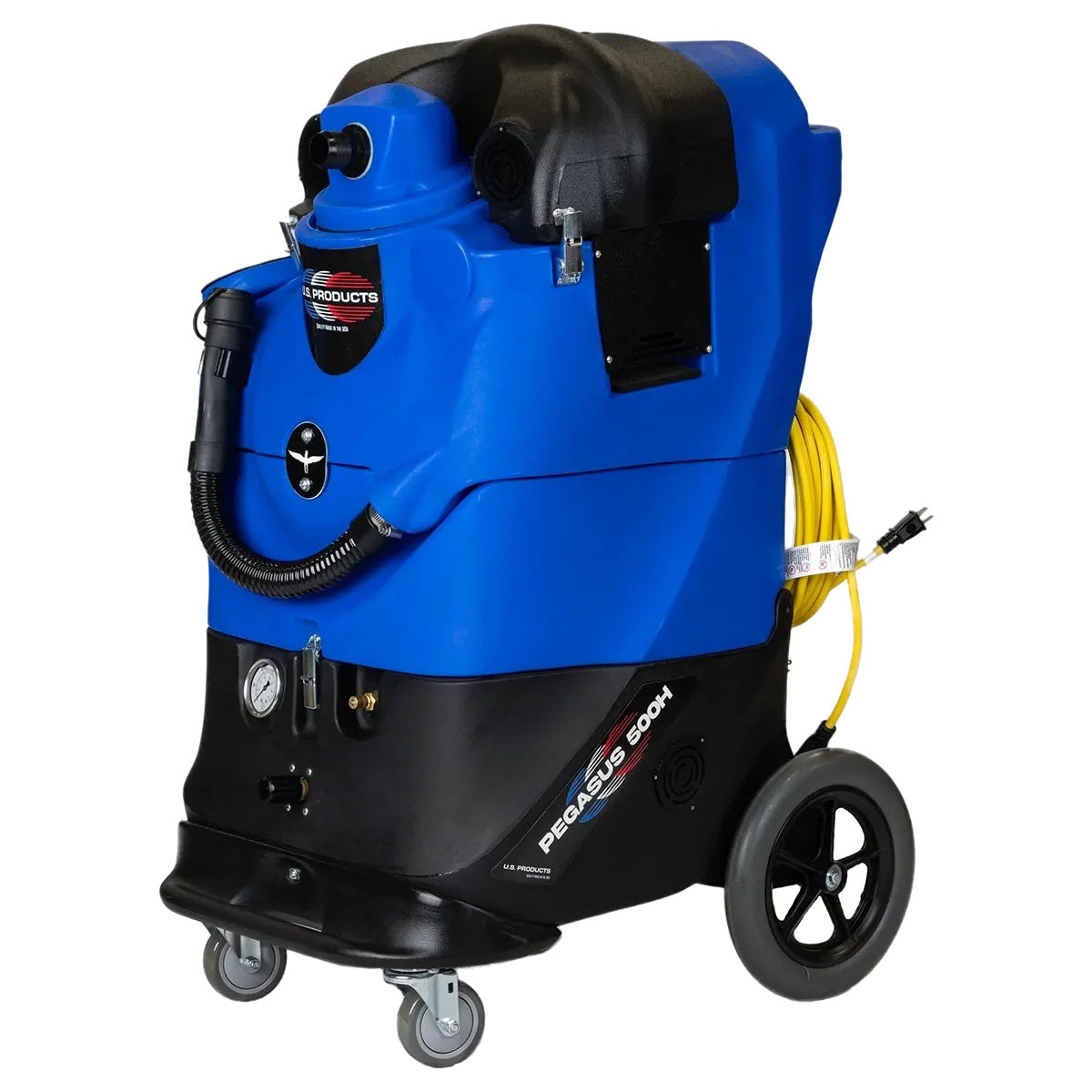

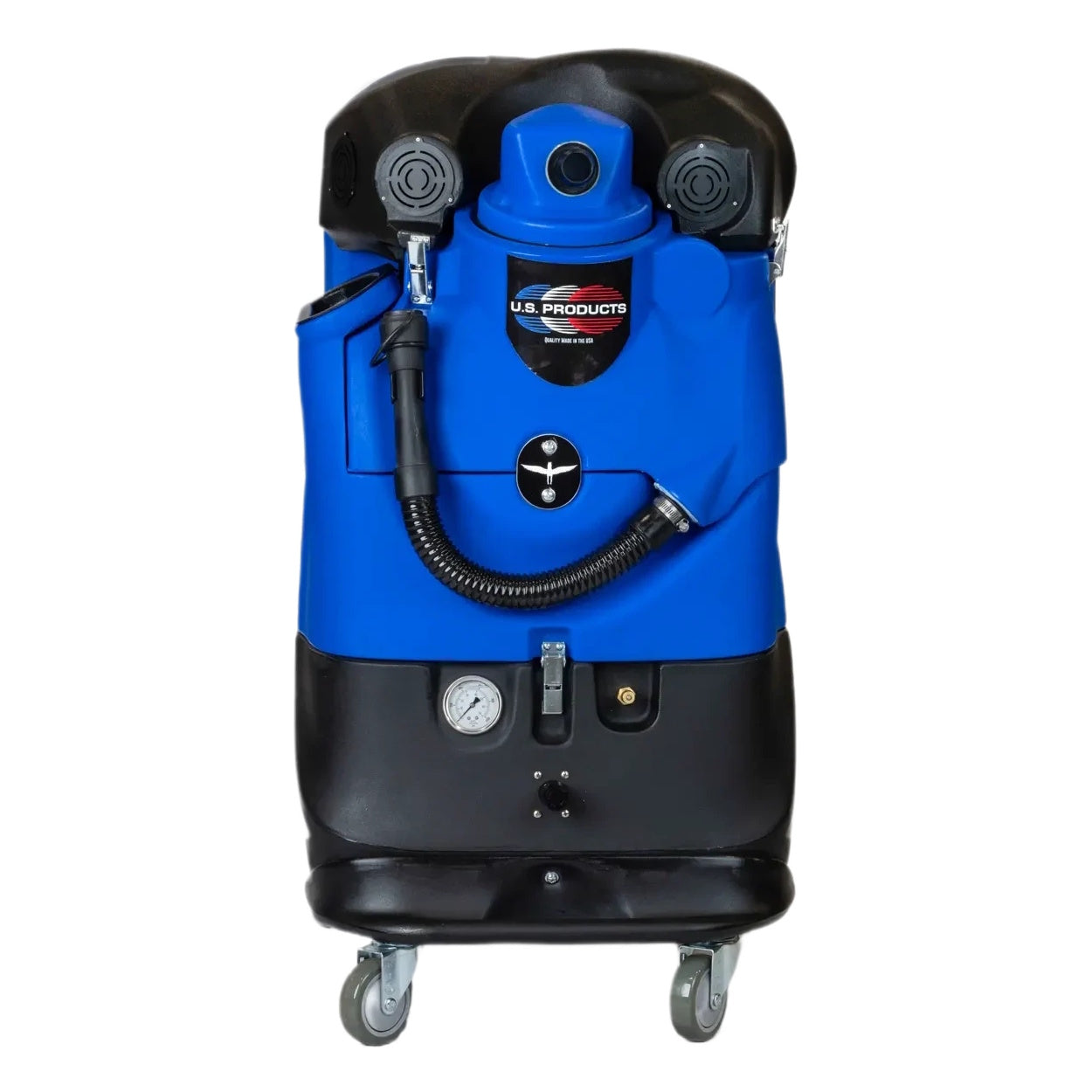

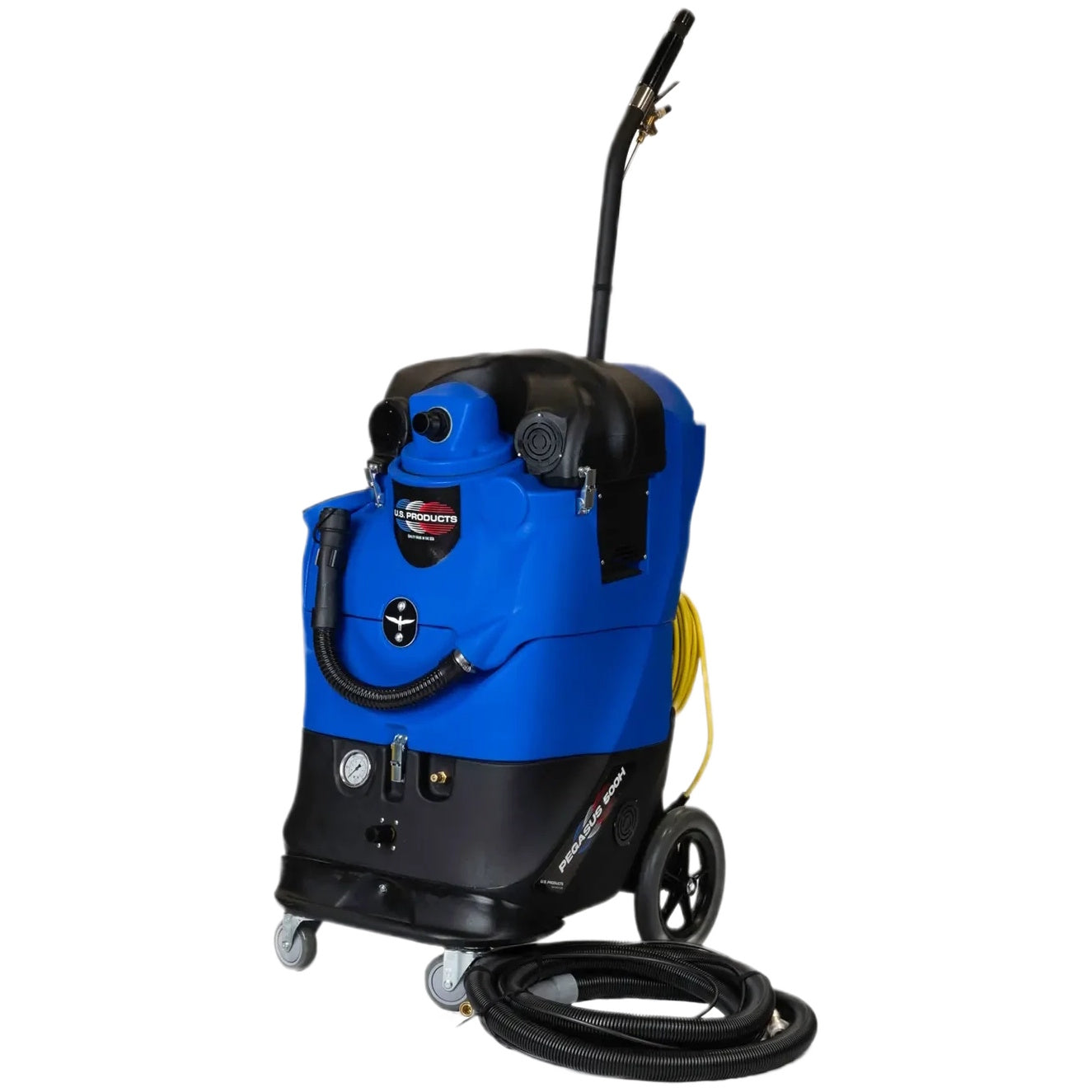

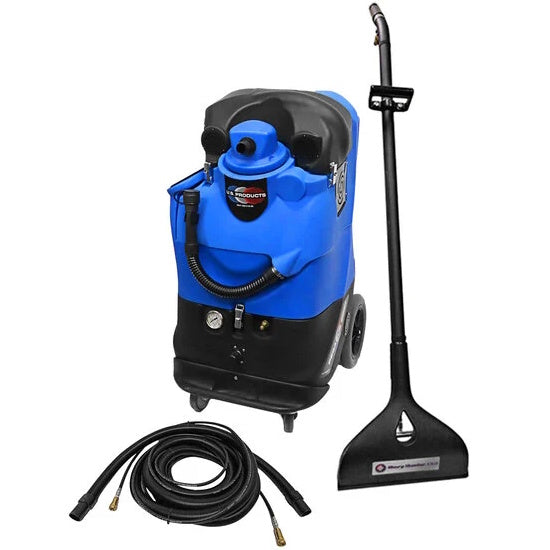

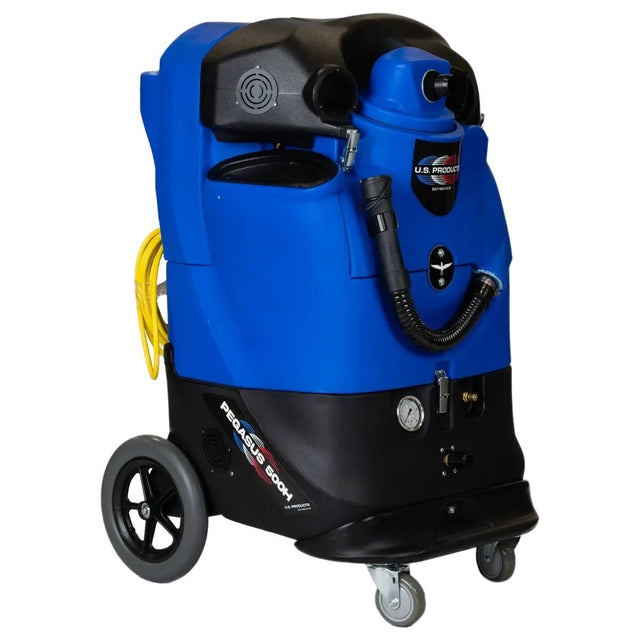

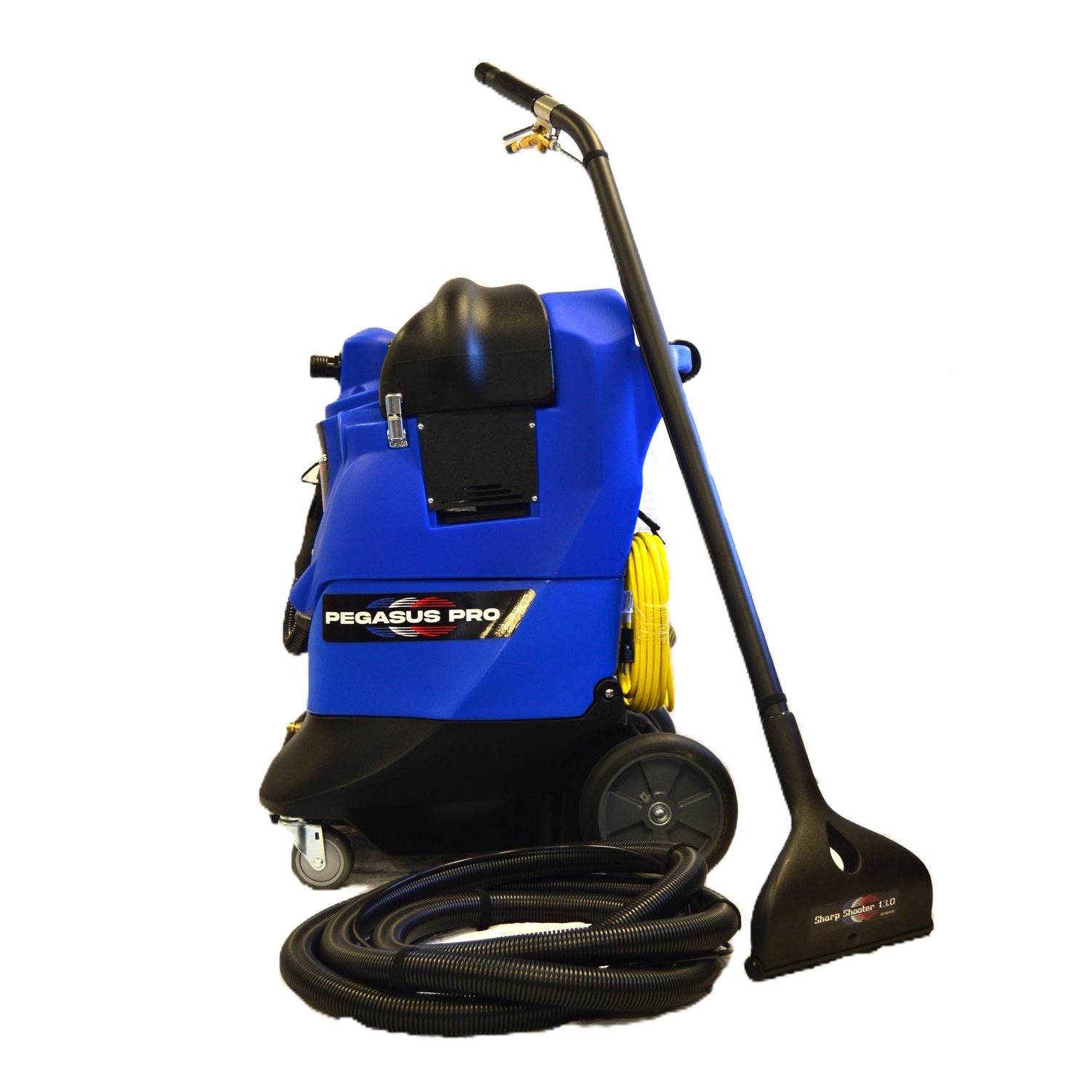

Pegasus PRO 500H Heated Extractor
Pegasus PRO 500H Heated Extractor
Product Highlights
- 3 stage dual vacuum with 200 CFM
- Adjustable 50–500 PSI for any job
- 1750W in-line heat for better results
- 12 gal solution + 12.5 gal recovery
Professional heated extractor built around high airflow, so you recover more moisture, speed up dry times, and leave carpets and upholstery looking noticeably more finished on every job.
Couldn't load pickup availability
Instant heat. Strong airflow. Built to move fast. The Pegasus 500H is designed for cleaners who want a true step up in real-world productivity—quick transitions from carpet to upholstery, consistent heat, and dependable recovery that helps you leave carpets cleaner and drier with fewer passes.
What makes the Pegasus different on the job

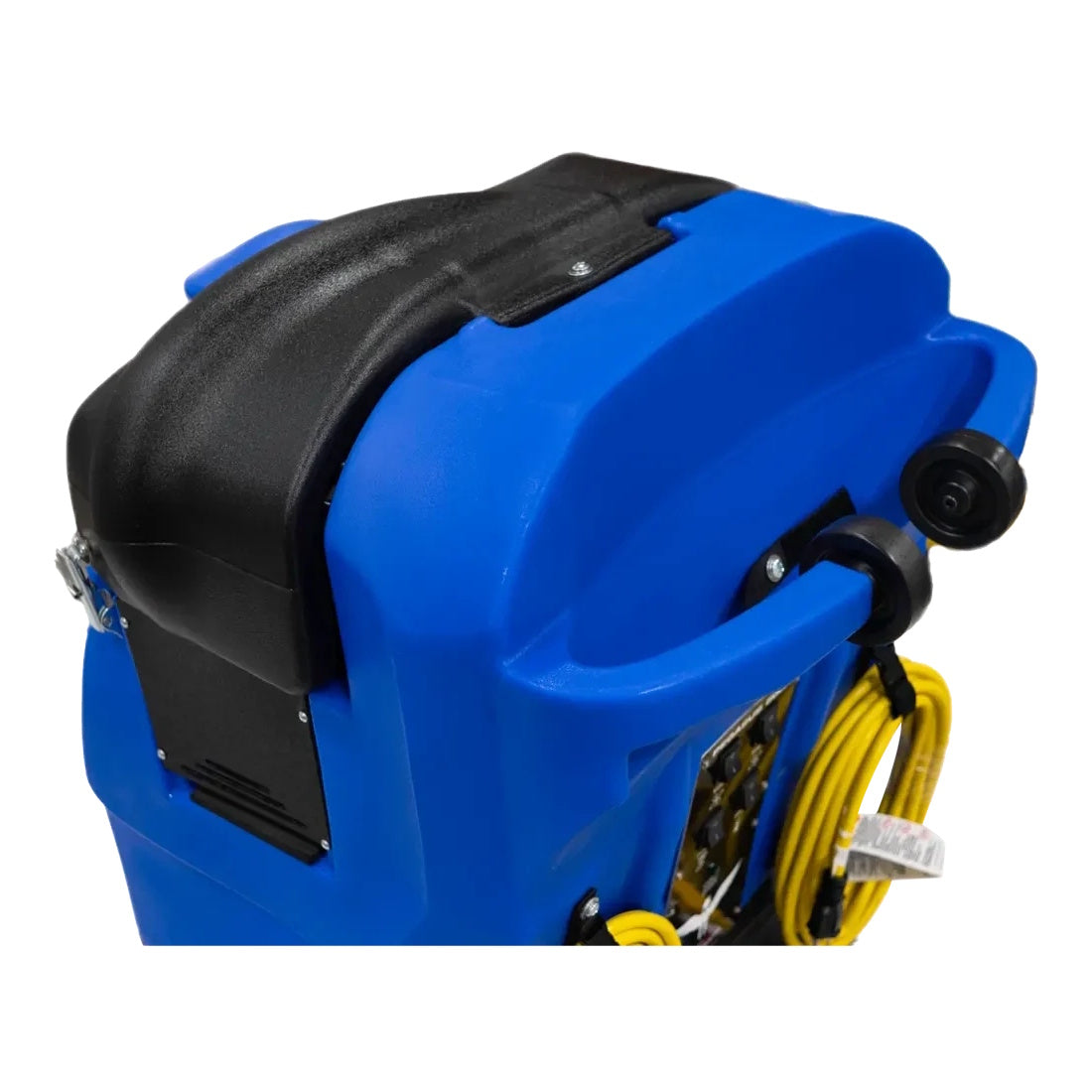

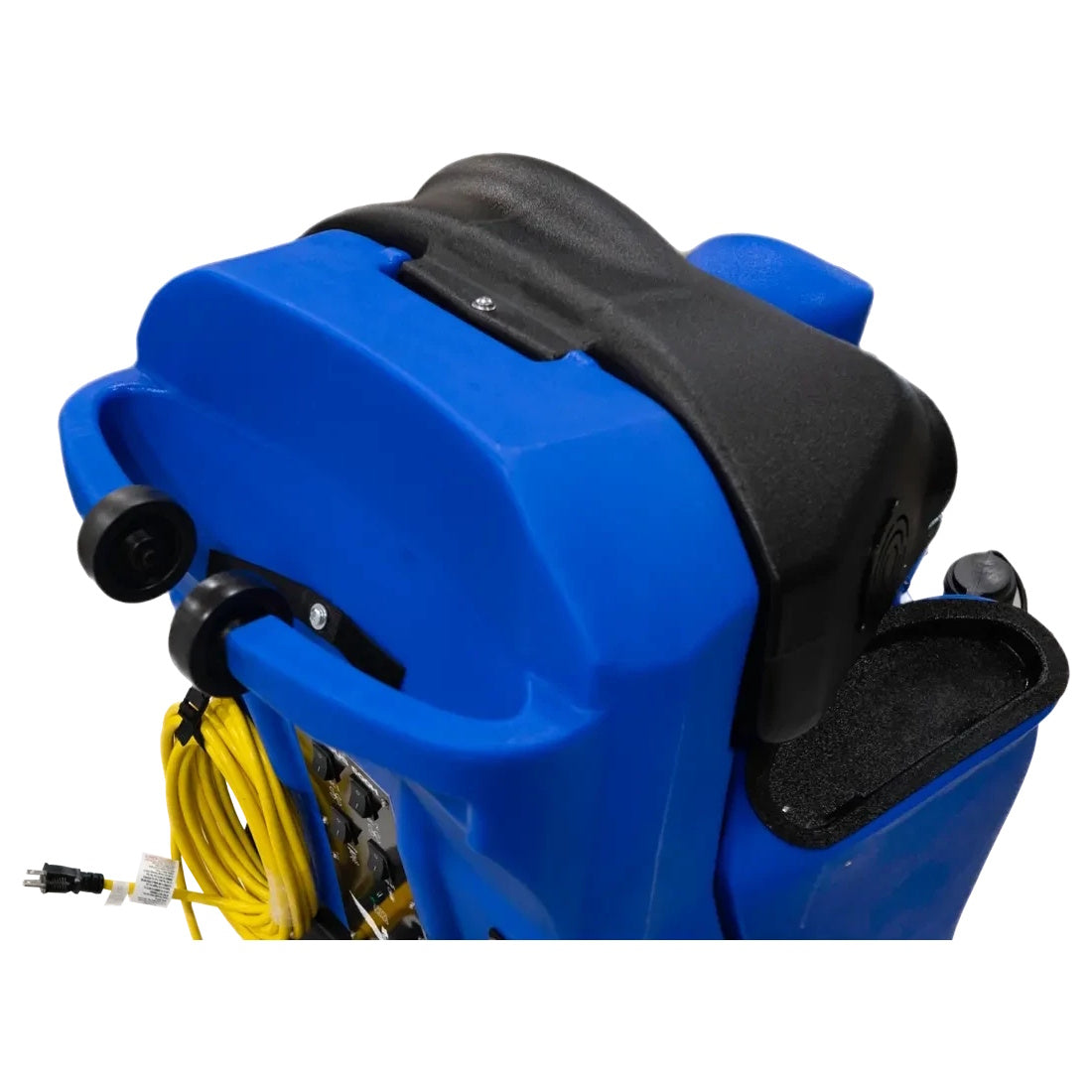

It’s an airflow-first extractor. The Pegasus 500H uses dual top-mounted 5.7" 3-stage vacuum motors running in parallel to deliver high airflow and strong lift, so you’re pulling more moisture back out of the carpet instead of leaving it behind. That means faster dry times, less risk of wick-back, and a more “finished” look when you pack up.
Instant heat that actually helps you clean
The built-in 1750W in-line heater delivers quick, consistent heat for breaking up traffic lane oils and boosting rinse performance—especially on commercial carpet. It’s the kind of heat that helps your chemistry work better so you’re not chasing the same spots over and over.
One machine for carpet and upholstery
The adjustable pump gives you the range to dial things in for different tools and surfaces. Run lighter settings for upholstery, then step up pressure for carpet cleaning when you need more punch—without changing machines.
Designed for fewer interruptions

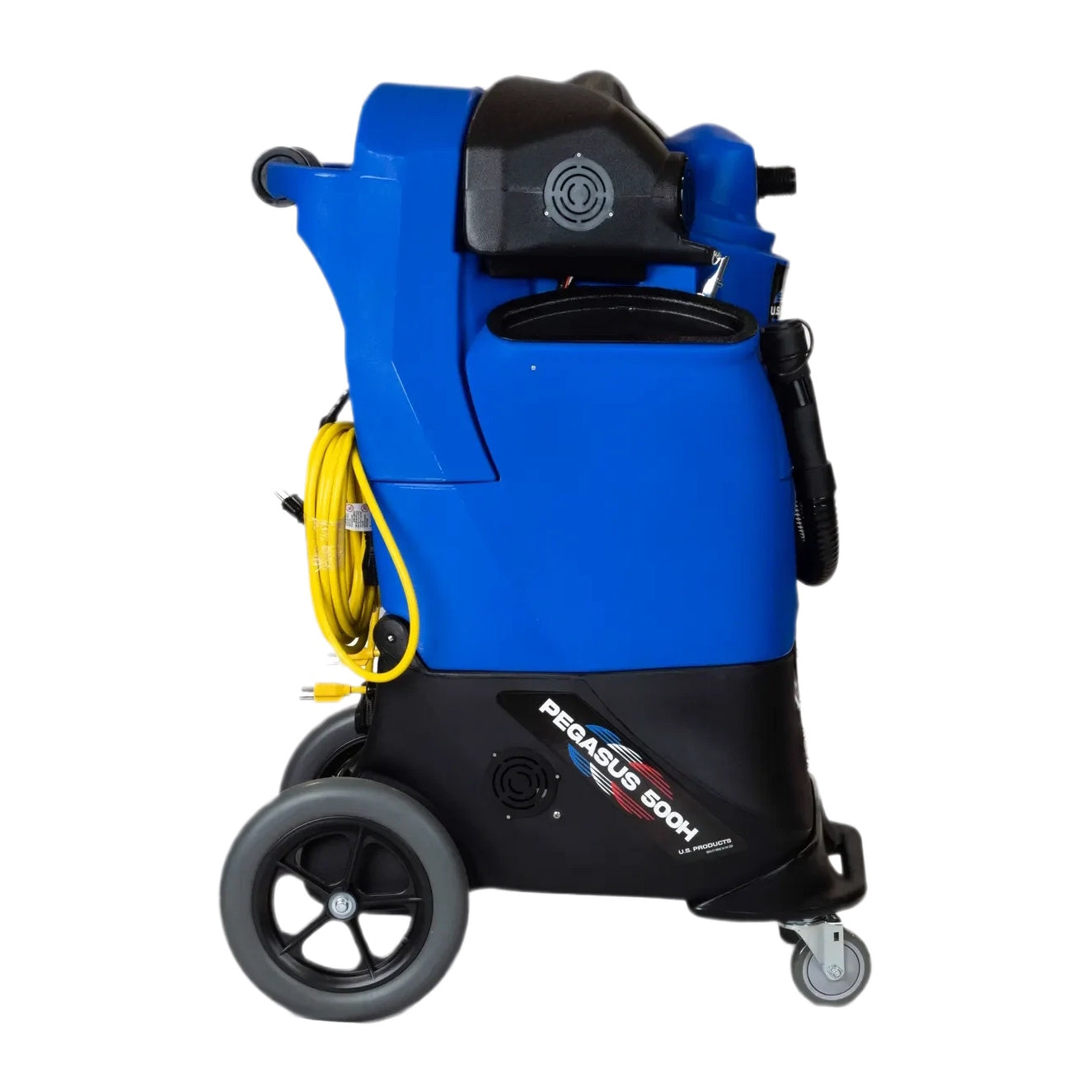

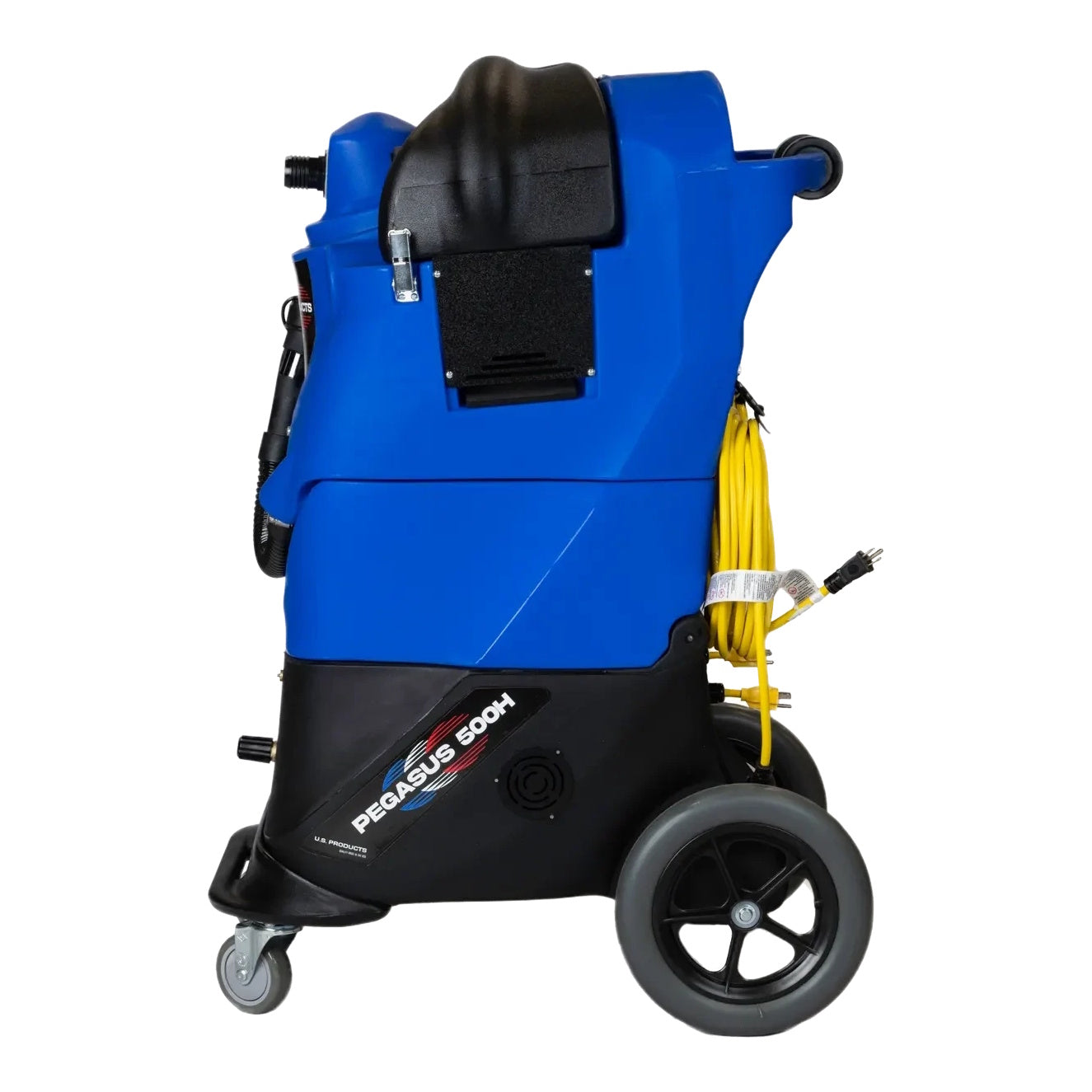

With a full-size solution tank and large recovery capacity, the Pegasus keeps you cleaning longer between stops. Add the upright layout and big rear wheels and you get a machine that’s easier to maneuver than many “boxy” portables—especially in tight hallways, apartments, and commercial spaces.
Practical details you’ll appreciate

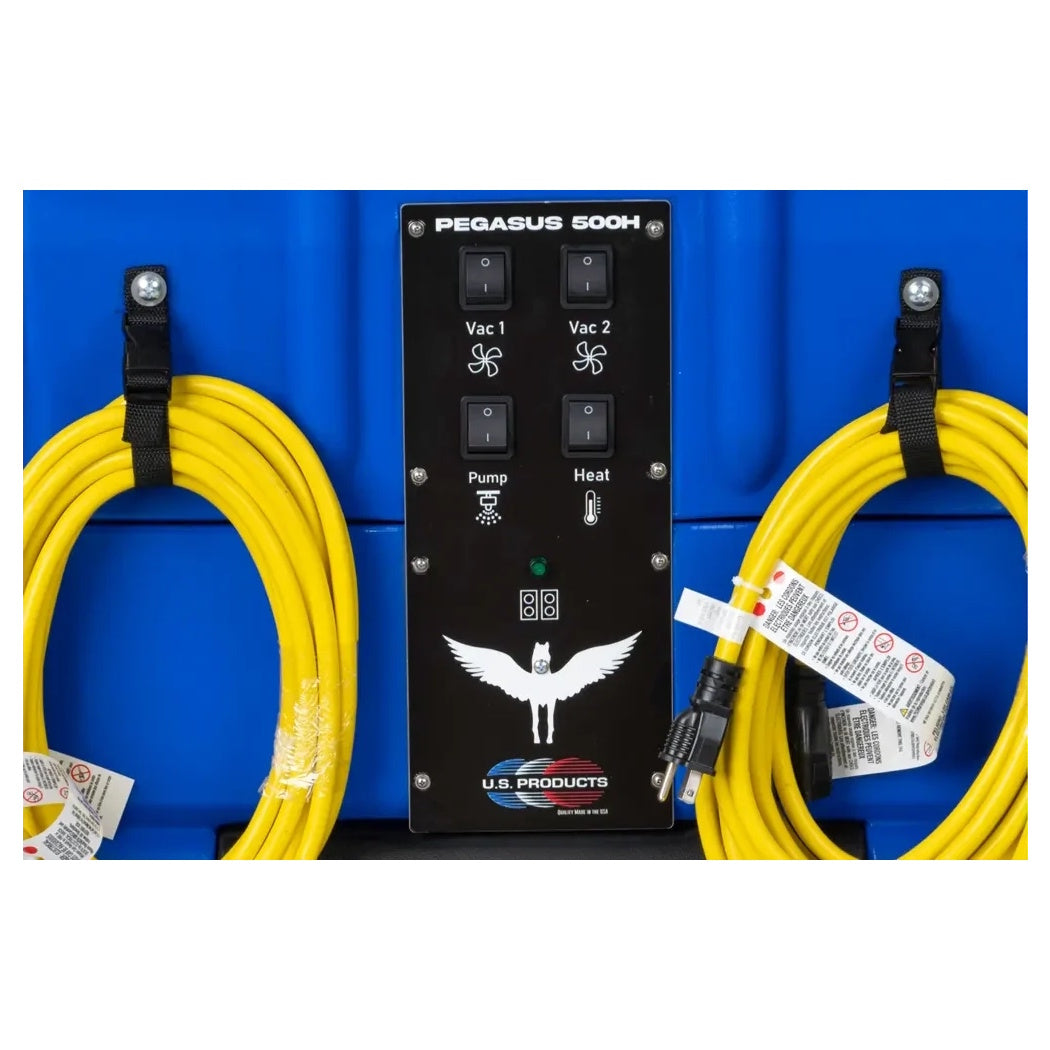

Little things matter on busy days. The Pegasus includes smart, operator-friendly features like a wand caddy, a large fill port, dual-circuit indicator light, and dual ball float shutoffs to help protect vacuum motors when the recovery tank fills. It’s built to be used hard and serviced easily.
Who this is best for
If you’re cleaning offices, apartments, common areas, restaurants, retail, or doing steady residential work where dry time and appearance matter, the Pegasus 500H fits perfectly. It’s also a strong choice for owners who want one heated extractor that can comfortably handle both carpet and upholstery work without feeling “maxed out.”
Performance
The Pegasus 500H is engineered for professional use, delivering strong suction and quick drying times. The adjustable pump allows seamless transitions between carpet and upholstery cleaning, while the in-line heating system ensures consistent water temperature. The unit’s durable construction and industry-leading warranty provide reliability for long-term use.
Specifications
| Vacuum | Dual 5.7" 3-stage motors (parallel airflow design) • 100" lift • 200 CFM |
| Heater | 1750W in-line |

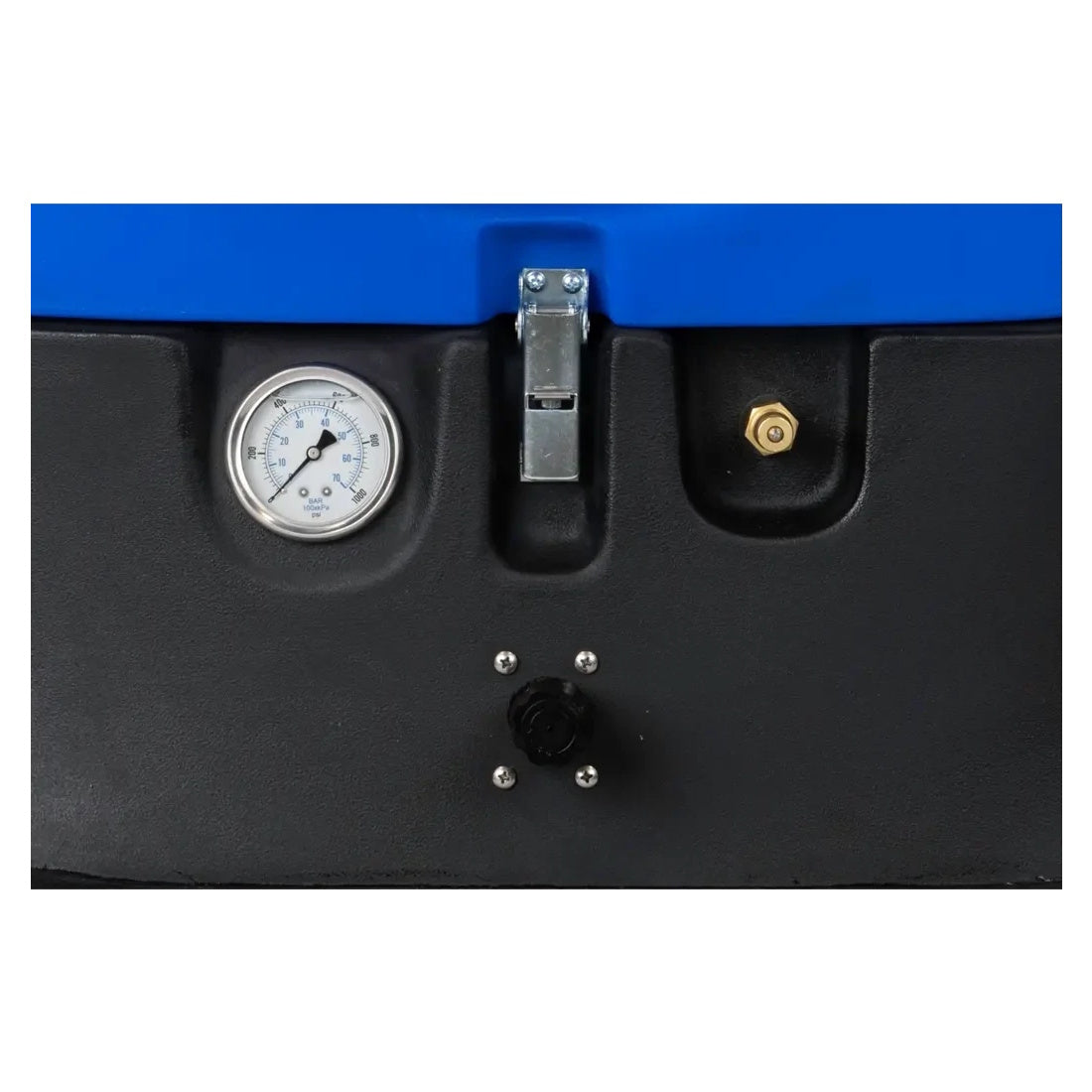

| Pump / Pressure | Adjustable 50–500 PSI |
| Solution Tank | 12 gallons |
| Recovery Tank | 12.5 gallons |
| Shutoff | Dual ball float |
| Drain | Drain hose |

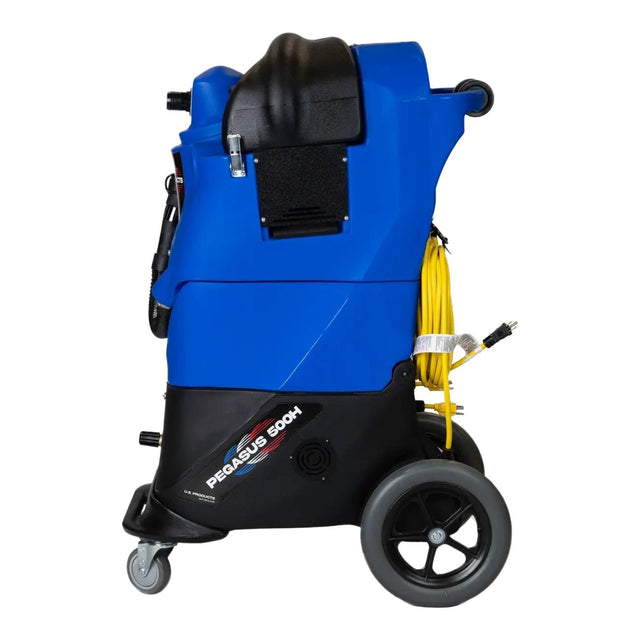

| Wheels | 4" front casters • 12" rear non-marking |
| Dimensions (L x W x H) | 32" x 24" x 46" |
| Weight | Approx. 105–108 lbs |

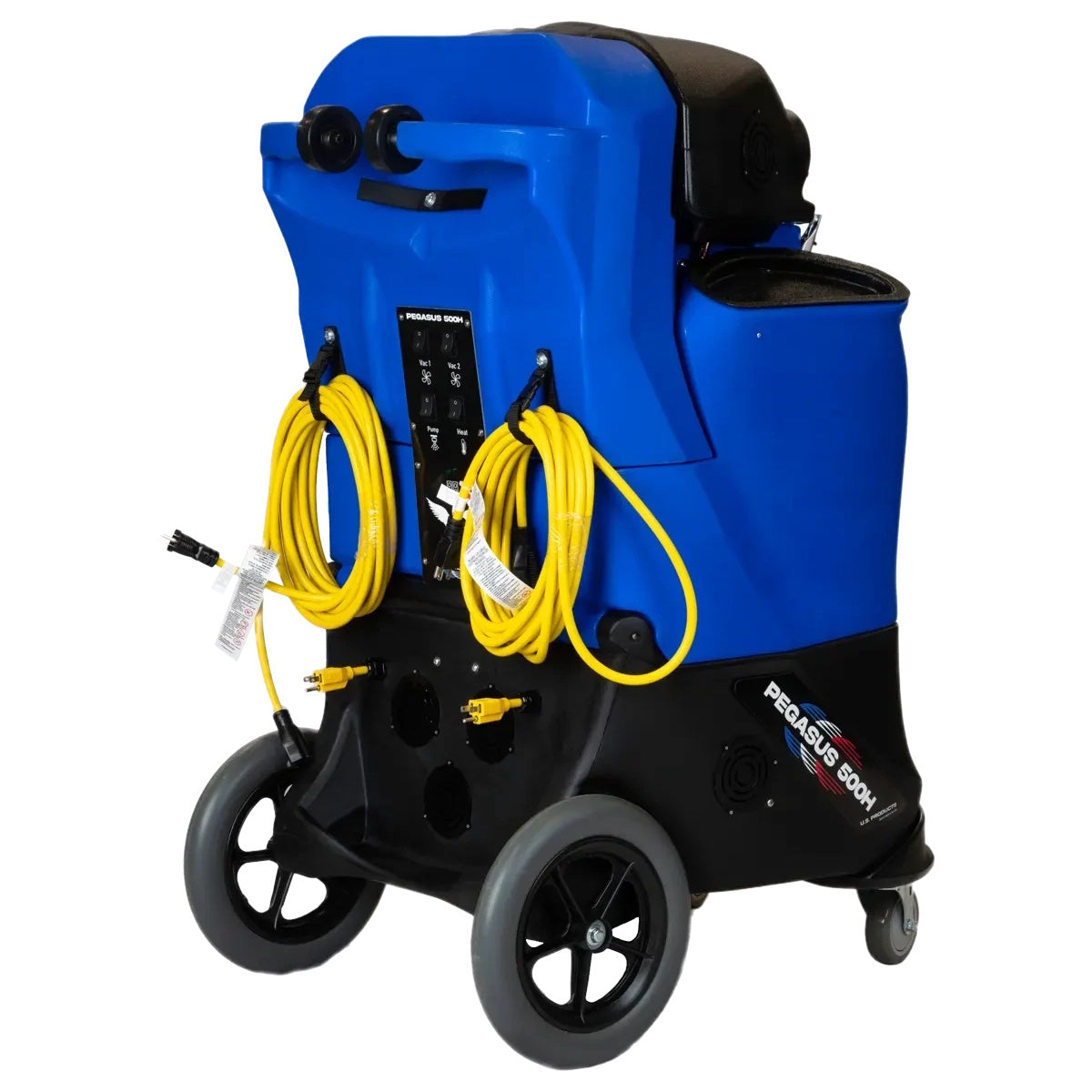

| Power | Dual cord • 15A per cord • NEMA 5-15P |
| Warranty | 10-year limited housing • 2-year major components • 90-day wear parts |
Bottom line
If you want a heated portable extractor that prioritizes airflow, dries faster, and moves easily job-to-job, the Pegasus 500H is a serious workhorse.
DOCUMENTS
DOCUMENTS
10 YEAR WARRANTY
10 YEAR WARRANTY
U.S. Products are designed to work strong for the professional cleaner and that strength is backed with a 10-year limited housing warranty, 2-year major components warranty, and 90-day wear parts limited warranty so you can tackle your toughest cleaning challenges with the utmost confidence. See full details in our Warranty Policy:
SmaK Products / U.S. Products (USP) – Limited Warranty Policy
Effective Date: January 1, 2022
SmaK Products and U.S. Products (USP) are committed to producing high-quality equipment. This warranty policy is designed to assure customers, distributors, and service centers that SmaK/USP stands behind the dependability and serviceability of its equipment.
Warranty Requirements
Proof of purchase and serial numbers are required for all warranty consideration.
This limited warranty begins on the date of the customer’s purchase and applies to the original purchaser only.
10-Year Limited Housing Warranty
SmaK/USP warrants that all rotationally molded housing and tanks will be free from manufacturing defects, workmanship defects, and material defects for a period of ten (10) years from the date of original purchase.
This warranty applies to the original purchaser only and is void if there is evidence of improper use, alteration, abuse, or neglect.
Replacement cost does not include shipping or labor.
2-Year Major Components Limited Warranty
SmaK/USP warrants that pumps, heaters, and vacuum motors are covered under a two (2) year limited warranty from the date of original purchase.
This warranty is void if there is evidence of worn motor brushes, water damage, freezing, chemical build-up, chemical damage, abuse, neglect, or tampering.
This warranty covers the replacement part, shipping of the new part, and labor.
Major Components Shipping & Return Policy
Replacement parts are shipped via normal ground delivery prior to return of defective parts and charged at normal cost to the Distributor.
Any expedited or air shipping charges are the responsibility of the Distributor.
SmaK/USP will issue credit for replacement parts if defective components are returned within thirty (30) days and are determined to be covered under warranty.
This warranty does not cover the cost of shipping damaged parts back to SmaK/USP for evaluation.
If a component is replaced, the replacement component carries a ninety (90) day limited warranty.
90-Day Wear Parts Limited Warranty
SmaK/USP will replace wear parts for a period of ninety (90) days from the date of original purchase of new equipment.
Wear parts are defined as parts that wear out due to usage or the passage of time, even when properly maintained.
Examples of wear parts include, but are not limited to: gaskets, wheels, brass components, cords, wires, electrical terminals, hoses, switches, thermostats, plastisol parts, filters, bearings, brushes, solenoids, O-rings, bulbs, heating elements, castors, and other items determined to be wear parts at the sole discretion of SmaK/USP.
This warranty covers the replacement part, labor, and shipping.
SmaK Products / U.S. Products Tools Warranty
The following tool warranties apply to the original purchaser only.
Sharp Shooter Wands carry a five (5) year limited warranty on the roto-molded head. All other parts are covered under a ninety (90) day wear parts limited warranty.
Value Wands carry a two (2) year limited warranty on the roto-molded head. All other parts are covered under a ninety (90) day wear parts limited warranty.
The Revolver Hard Surface Tool (HST) carries a five (5) year limited warranty on the roto-molded head, a one (1) year limited warranty on the rotary union, and a ninety (90) day wear parts limited warranty.
The UPH Upholstery Tool carries a five (5) year limited warranty on the roto-molded body and a ninety (90) day wear parts limited warranty.

US Products
U.S. Products extractors are designed and built in the USA. The company built its reliable, powerful systems over more than 30+ years of technology development and customer service. U.S. Products backs its market-leading solutions with a 10-year limited housing warranty, the longest of any commercial extractors.
-
Discover the U.S. Products Advantage.
Order with confidence from a company committed to delivering advanced carpet pressure cleaners and floor cleaning machines, backed by expert customer support to ensure you maximize your investment.
-
Industry-Leading Warranty
Built for professional cleaners, our machines are designed for durability and performance. We stand behind this commitment with a 10-year limited housing warranty, 2-year coverage on major components, and 90-day protection for limited wear parts, giving you the confidence to take on any cleaning challenge.
-
Faster Dry Times
U.S. Products carpet pressure cleaners are designed for efficiency, combining lightweight, ergonomic designs with powerful performance. Our advanced technology helps reduce drying times, allowing you to complete projects faster while achieving superior results.
-
Precision Engineering and Durable Construction
U.S. Products machines are built for strength and longevity through in-house rotational molding. Each unit is carefully molded and assembled at our U.S. facilities, ensuring the highest quality and durability.
